FL series
Intermittent and continuos motion machine
P.IVA 01627720483
C.F. 01627720483
Operational Headquarters
Via del Savena, 41
40065 Pianoro (Bologna) Italy
Registered Office
Via Toscana, 22
53036 Poggibonsi (SI) – Italia
The whole production range of FL filling machines has been designed to work in the highest sterile levels environment.
Each machine is developed and manufactured based on liquid features, filling quantity and bottles dimensions. Nothing is left to chance.

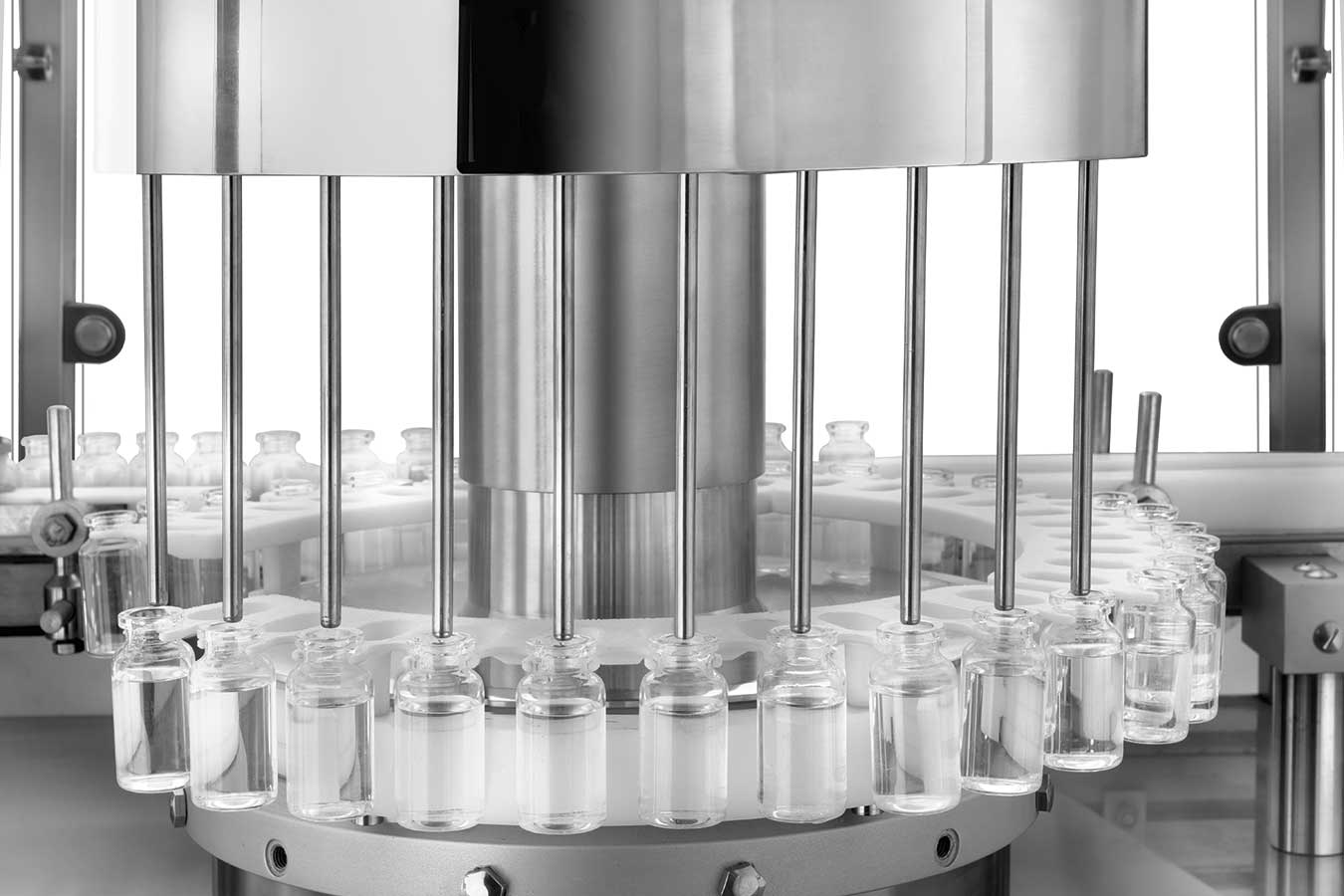

We make use of special bottles movements that gather bottles in groups, which are filled simultaneously, even up to 16 bottles at a time, while at machine infeed and outfeed bottles are transported in continuous motion.
With this combination of intermittent and continuous motion we can maintain high production speeds while performing high dosages as well as many operations on the bottles: Nitrogen purging, 100% IPC control weight, camera defect controls.
Our machines motions are quite stable, bottles are centered and held individually, they are never left free except on the conveyor belts where control and ejection devices are easily applicable.
| DESCRIPTION | DATA |
|---|---|
| MECHANICAL SPEED (Bpm) | From 100 to 500 bottles/min. |
| FILLING RANGE (Standard) | From 10 ml. to 300 ml. |
| EXTRA (Min and max ) | From 2 ml to 1000 ml. |
| DOSAGE ACCURACY | Between +/-0,5% and +/- 2% volume |
| SINGLE DOSAGE & MULTIPLE DOSAGE | Yes |
| BOTTLES RANGE (Standard) | From Ø 14 to Ø 32 mm. x height from 30 to 80 mm |
| EXTRA | Min. Ø 8 mm. to max. height 220 mm. |
| FILLING SYSTEMS | Piston pumps (syringes), peristaltic pumps, flowmeter and mass dosators |
| MOTION SYSTEMS | Continuous motion, combined motion (continuous + intermittent) |
| FEEDING SYSTEM | Full automatic |
| CAN WORK IN STERILE ROOMS | Standard |
| LAMINAR FLOW EQUIPPED | Option |
| OPEN & CLOSED RABS EQUIPPED | Option |
| CIP/SIP EQUIPPED | Option |
| ELECTRONIC FILLING ADJUSTMENT | Yes |
| AUTOMATIC REJECT | Yes |
| NO BOTTLE NO FILL NO CAP | Standard |
| 100% IPC NET WEIGHT CONTROL | Option |
